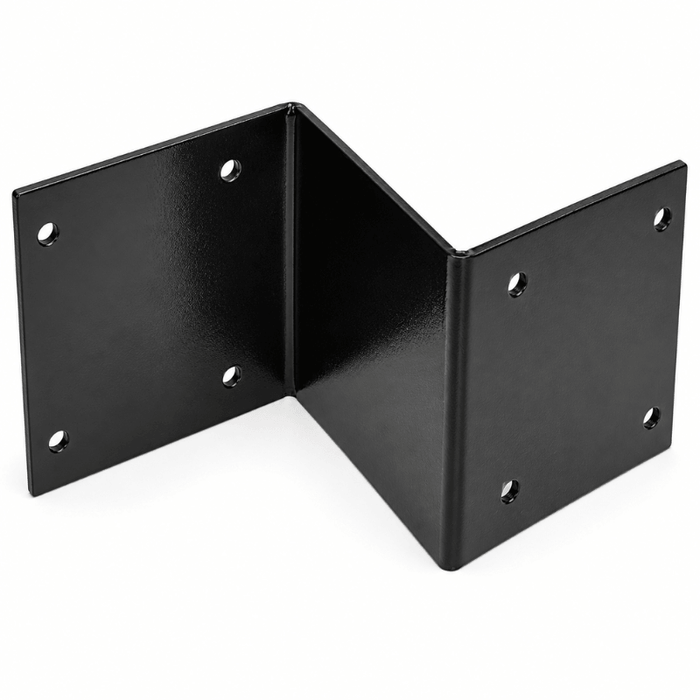

Atlas 40802 Optional Motor Bracket for 4-Post Lifts
Atlas 40802 Optional Motor Bracket for 4-Post Lifts
40802 Optional Motor Bracket for 4-Post Lifts

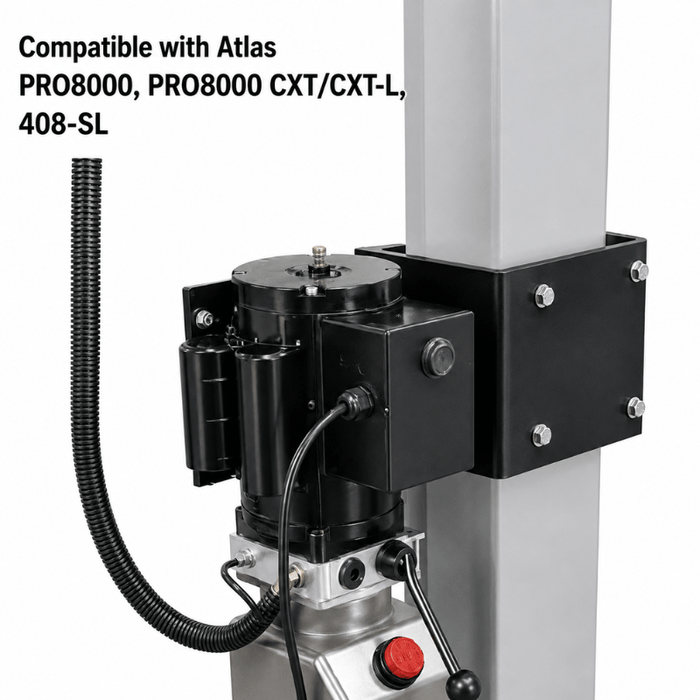

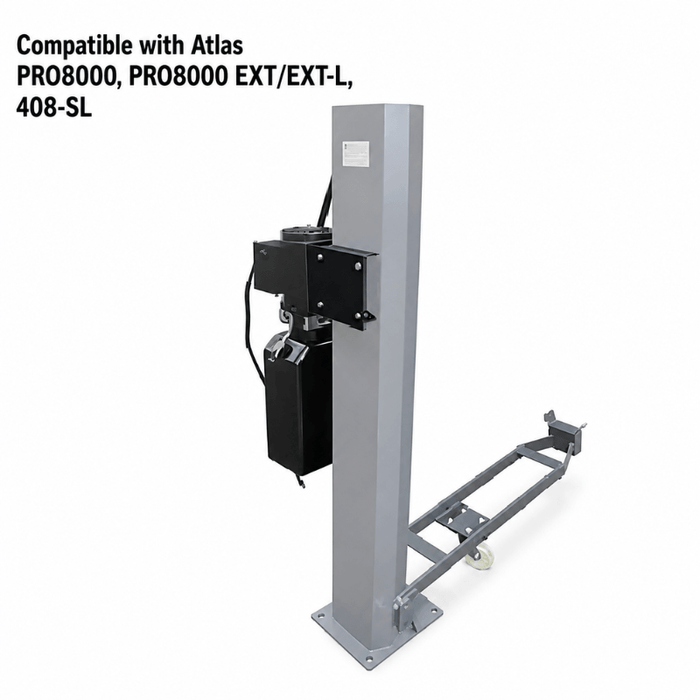

Improve your lift's layout with the Atlas 40802 Optional Motor Bracket. Designed for compatible Atlas four-post lifts, this heavy-duty bracket relocates the hydraulic power unit from the front of the lift column to the side, reducing the overall lift width while providing added protection for the power unit. It is an excellent upgrade for garages and workshops where maximizing usable space is important.
Constructed from durable steel for long-lasting performance, the Atlas 40802 installs using the included mounting bolts and lock nuts for a secure fit. Compatible with several popular Atlas hobbyist four-post lifts, this bracket offers a simple solution for improving accessibility, optimizing garage layouts, and protecting the lift's hydraulic power unit during everyday operation.
Specifications
- Brand: Atlas
- Model: 40802
- Product Type: Optional Motor Bracket
- Material: Heavy-Duty Steel
- Mounting Style: Bolt-On
- Bolt Hole Spacing (Side to Side): 5-1/2" On Center
- Bolt Hole Spacing (Top to Bottom): 5" On Center
- Includes: Mounting Bolts and Lock Nuts
- Power Unit Mounting Bolts: Not Included
- Shipping Weight: 12.05 lbs.
Features
- Relocates the hydraulic power unit to the side of the lift column
- Helps reduce the overall width of compatible four-post lifts
- Creates additional usable space in garages and workshops
- Helps protect the power unit from accidental contact or damage
- Heavy-duty steel construction for long-lasting durability
- Bolt-on installation for quick and secure mounting
- Includes mounting bolts and lock nuts
- Ideal for residential garages and restoration shops
- Compatible with several Atlas hobbyist four-post lift models
Compatible Lift Models
- Atlas Garage PRO8000
- Atlas Garage PRO8000EXT
- Atlas Garage PRO8000EXT-L
- Atlas APEX8 (ALI Certified)
- Atlas 408SL Premium
